Evolution of Digital Panel Meter

The Highest Usability for Production Site

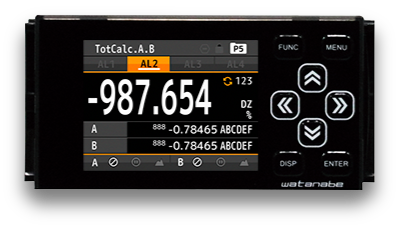

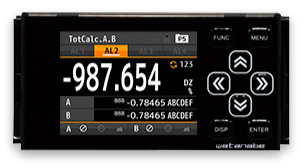

Graphical Panel Meter WPMZ Series

WPMZ Series
  • DC Voltage/Current Meter:WPMZ-1
  • Strain Gauge Meter:WPMZ-3
  • Rotation/Speed Meter:WPMZ-5
  • Flow Rate/Flow Totalizer:WPMZ-6

High performance at basic specifications
of Digital panel meters

Easy to read × Easy to use

Watanabe developed WPMZ series as multi-display digital panel meter matched to the production site, and focused on the basic performance such as [1. Easy to read] [2. Easy to use].
WPMZ is a product that can cover various requirements, such as process monitoring, quality judgement etc. at the production site for various applications and environment.

■ Features of WPMZ series

1Focused on
Easy to read

Features of WPMZ series

High-brightness and sharp display to read small letters

2.4 inch high brightness TFT full-color LCD.
WPMZ has 5 level brightness setting to adjust according to the indoor / outdoor lighting of site.
Also 4 high visibility background color can be set in case of alarm output is ON.

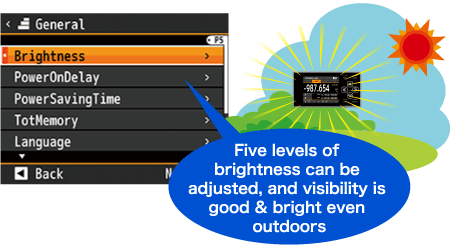

■ 5 levels brightness setting

Five levels of brightness can be adjusted, and visibility is good & bright even outdoors

■ Background color changes when alarm output

Alarm display color can be selected from 3 colors of Red, Green and Yellow according to the ambient lighting environment

90° Display rotation is effective to use narrow places of board

There is a function to rotate display 90°.
Also able to change key assignment of cross keys.

Easy to read by large-size & high-brightness color LCD display. (left) <br>
							Able to change the display direction to vertical.(right)

2Focused on
Easy to use

Numerical display and graph display selectable according to the measurement purpose

[Value display], [Bar graph display] and [Trend graph display] can be selected.
WPMZ has many useful functions such as Self-diagnostics function, 1~3 factors display function, which matches to the use of production site.

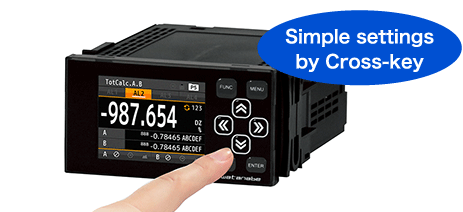

Simple settings by Cross-key

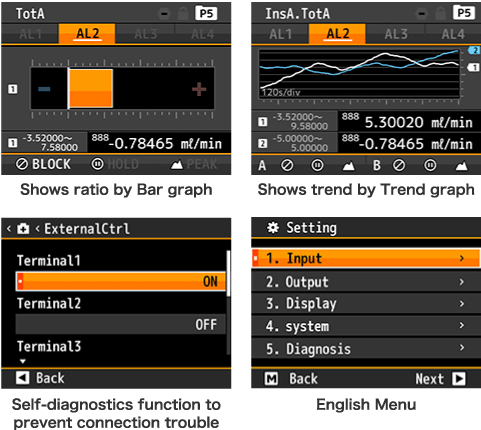

Shows ratio by Bar graph/Shows trend by Trend graph/Self-diagnostics function to prevent connection trouble/English Menu

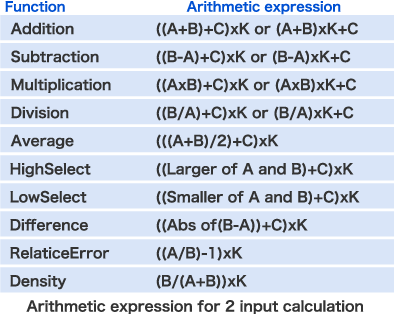

10 Arithmetic expression for 2 input calculation*In case WPMZ-1/3

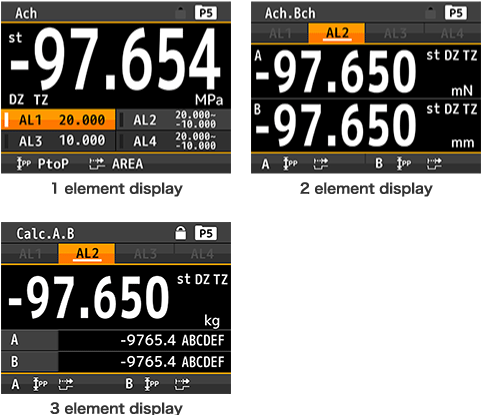

Measurement value or calculation result can display 1 to 3 elements in one display.
You can select 10 kinds of arithmetic expression for Ach & Bch calculation.
Arithmetic expression can be easily set by cross-keys.
2ch display saves install space.

Arithmetic expression for 2 input calculation
1 factor display/2 factor display/3 factor display

■ Features of 4 products

Covers individual requirements
with 4 products

Features of 4 products

The WPMZ series have 4 product lineups according to the measuring signal, installation requirements, customer's machine and equipment.
WPMZ is compatible with applications in various industries due to high performance as a multi-display digital panel meter and various functions.
WPMZ can use as [DC voltmeter], [DC ammeter], [Strain gauge meter], [Tachometer], [Flow meter] etc. and useful & high performance at sites as process measurement.

WPMZ-1

DC Voltage / Current Measurement

WPMZ-1
  • ・DC Voltage / Current input
  • ・High-speed sampling rate(1ch : 4000 times/sec, 2ch : 2000 times/sec)
  • ・Alarm log function

[WPMZ-1] is for measuring DC voltage / Current, and it is especially suited for High-speed sampling on the production line in factory manufacturing process.
We recommend using at parts inspection for shortening the inspection process by NG judgement and clearance judgement etc.

WPMZ-3

Strain Gauge Measurement

WPMZ-3
  • ・Strain Gauge input
  • ・Wave compare, Multi hold function
  • ・High-speed sampling rate (1ch : 4000 times/sec, 2ch : 2000 times/sec)

[WPMZ-3] is for measuring strain gauge, and it has wave compare and multi hold function.
It is suitable for Process control, Quality control and traceability etc. at the manufacturing site where mass production is carried out with constant cycle.

WPMZ-5

Rotation and Speed Measurement

WPMZ-5
  • ・Rotation and Speed Measurement
  • ・Pulse input
  • ・Line driver input

[WPMZ-5] is Digital panel meter for measuring Rotation & Speed.
By installing a rotary encoder in a line or device that uses a rotating mechanism such as a roll, the speed of the roll can be measured in real time and the rotation can be controlled.

WPMZ-6

Instantaneous and integrated flow rate

WPMZ-6
  • ・Flow rate / Flow total measurement
  • ・Pulse input
  • ・Analog input

[WPMZ-6] is Digital panel meter for measuring Instantaneous / Integrated Flow rate.
It is useful for flow rate / flow total measurement of tanks installed in equipment or production lines etc.
WPMZ-6 can measure two different liquids flow rates, to monitor the flow difference to stabilize the mixing process.

■ Application examples

Great improvement in process control
at production and inspection

The WPMZ series can be used in a variety of applications as instrumentation indicators (digital panel meters) for machines, devices, and factory production lines.
Input signals from various sensors, real-time display as well as operation processing and various log functions are convenient for monitoring and recording conditions.

■ DC Voltage/Current Measurement

WPMZ-1

Calculation function + Alarm log function > Can be used for Capacitor lead length detection!

Input signals (Ach, Bch) from the sensor to WPMZ-1.
Able to detect capacitor lead length by using calculation function (A-B). Also, WPMZ-1 has alarm log function to keep trend data before and after alarm of comparison judgement.

Alarm log function:Trend data can trace up to max. 8 alarms.
High-speed sampling > Small change of value can be measured!

ΔHigh-speed sampling of max. 4000 times/sec with 1ch input, and max. 2000 times/sec with 2ch input, by ΔΣ modulation.
Capture changes in instantaneous values such as press management and torque management.

■ Strain Gauge Measurement

WPMZ-3

Wave compare mode

Alarm output and waveform log function by comparing measurement waveform and comparison waveform.

Multi hold mode

Outputs each compare result for each hold value of each section and the comparison judgement setting value.

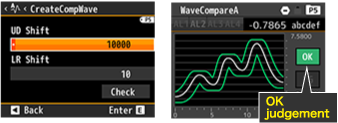

Judgement waveform creation

Function to create judgement waveform necessary for comparison

Judgement waveform creation
Alarm output
Alarm output

Output alarm as ‘NG’ judgement if there is more than 1 measured point which is out of judgement waveform.

Display Example:Displays the hold value in each section with the current measurement value. Icons will appear according to the hold detail section switching method.

■ Rotation and Speed Measurement

WPMZ-5

Rotation and Speed Measurement:WMPZ-5

■ Instantaneous and integrated flow rate

WPMZ-6

Instantaneous and integrated flow rate:WMPZ-6

Many applications in various fields such as production, process control and inspection!

■ Product lineup

Model Power supply  Input:Ach/Bch Option output Comparator output (AL1~AL4)

DC Voltage / Current Meter

WPMZ-1

Detail ▶

  • · AC100~240V ±10%
  • · DC12V ±10%
  • · DC24~48V ±10%
  • · DC Voltage / Current input
    (Process input)
  • · Analog output
  • · BCD output
    (Open collector NPN / PNP)
  • · RS-232C
  • · RS-485
    (Modbus RTU)
  • · Open collector output
    (NPN / PNP)
  • · Relay output
    (Normally open)

Strain Gauge Meter

WPMZ-3

Detail ▶

  • · Strain gauge input
  • · DC Voltage / Current input
    (Process input)

Rotation / Speed Meter

WPMZ-5

Detail ▶

  • · Pulse input
  • · Line driver input
  • · Open collector output
    (NPN / PNP)

Flow Rate / Flow Totalizer

WPMZ-6

Detail ▶

  • · Pulse input
  • · Analog input

WPMZ series as the digital panel meter with highest usability for Production Site
