TS2

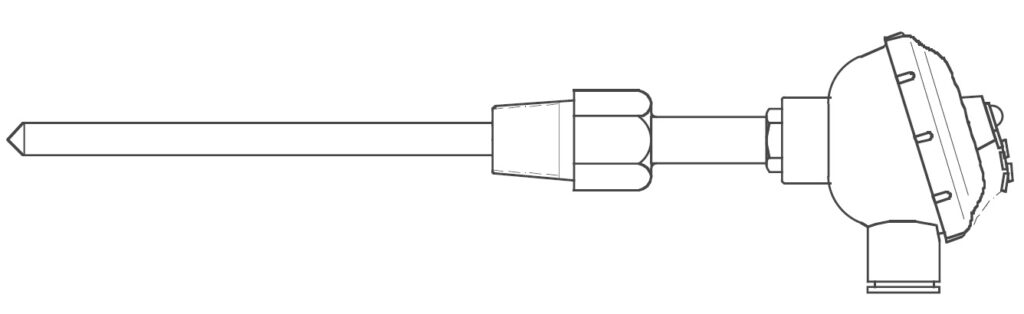

Sheath Thermocouple with terminal and Thread fitting

TS2 is a screw-in type sheathed thermocouple that can be used in various applications such as
furnaces and flues up to 1050 ° C.
Standard screws are taper pipe thread (R) and pipe parallel thread(G), but other types of screws are also available.


Delivery: Inquiry

Features

check_circle
A screw-in type sheathed thermocouple that can be used in various applications such as
furnaces and flues up to 1050 ° C.

Download

Specifications

ElementT,J,E,K
ToleranceClass1, Class2
Nember of elementSingle, Double
Measuring junctionNon-grounding(standard)
Insulation resistance20MΩ or more with 100V (φ2.0 or less)
100MΩ or more with 500V (φ2.3 or more)
