TS1

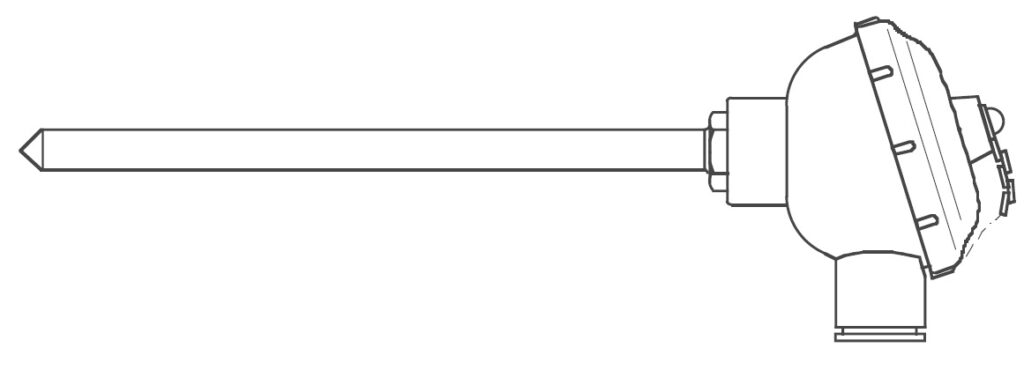

Sheath Thermocouple Straight Typewith Terminal

TS1 is the simplest shape Sheath thermocouple with a terminal box.
By combining loose flanges (LFL) and compression fittings (CFG),it can be used for temperature measurement as an insert type that allows adjustment of the protection tube length.


Delivery: Inquiry

Features

check_circle
With Connection head and terminal
check_circle
Simple straight type

Download

Specifications

Thermocouple typeT,J,E,K
ToleranceClass 1, Class 2
Number of elementSingle / Double
Measuring junctionNon-grounding (Standard)
Insulation resistance20MΩ or more with 100V at φ2.0 or less
100MΩ or more with 500V at φ2.3 or less
