T03

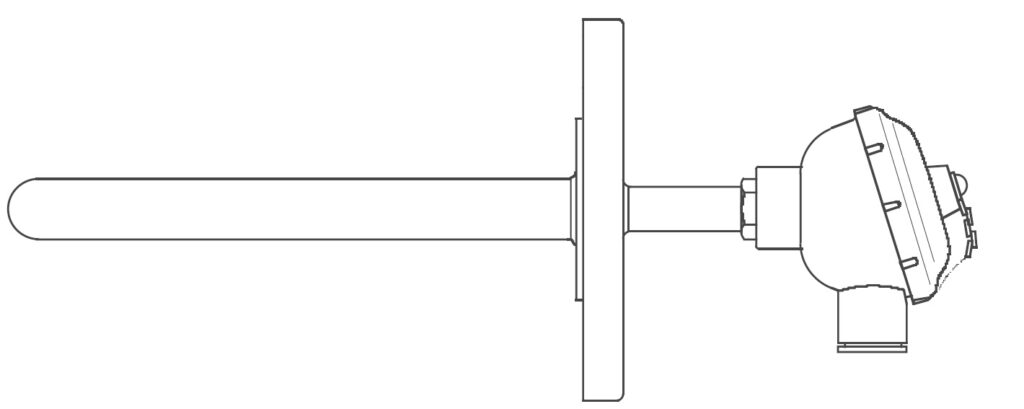

Flange Type Thermocouplewith Terminal
The T03 is a flange type thermocouple that can be used in various applications such as in furnaces and flues up to 1200 ° C.
The standard flange is JIS standard, but JPI standard and ANSI standard flanges can also be manufactured.
Delivery: Inquiry
Features
With Connection head and terminal
With Flange
Download
Date Sheets
Specifications
| Thermocouple type | T,J,E,K |
|---|---|
| Tolerance | Class 1, Class 2 |
| Number of element | Single / Double |
| Measuring junction | Non-grounding (Standard) |
| Insulation resistance | 10MΩ or more with 500V |
