RS1

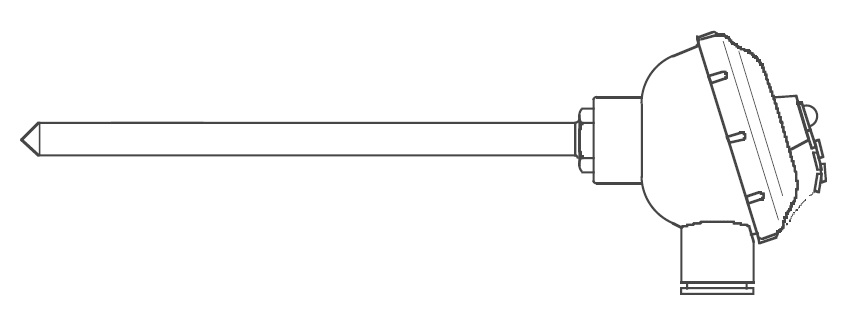

[Sheath RTD] Straight type with Terminal
RS1 is a sheath resistance temperature detector with the simplest shape for a terminal box.
By combining with loose flange (LFL) and compression fitting (CFG), it can be used for temperature measurement of ducts and tanks as an insertion type with adjustable sheath length.
Delivery: Inquiry
Features
A sheath resistance temperature detector with the simplest shape for a terminal box.
Download
Date Sheets
Specifications
| Element | Pt100Ω Resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A±(0.15＋0.002｜t｜)℃ Class B±(0.3＋0.005｜t｜)℃ |
| Measuring Current | 1mA |
| Noumber of element | Single, Double |
| Insulation resistance | 100MΩ or more with 125V |
