RRS

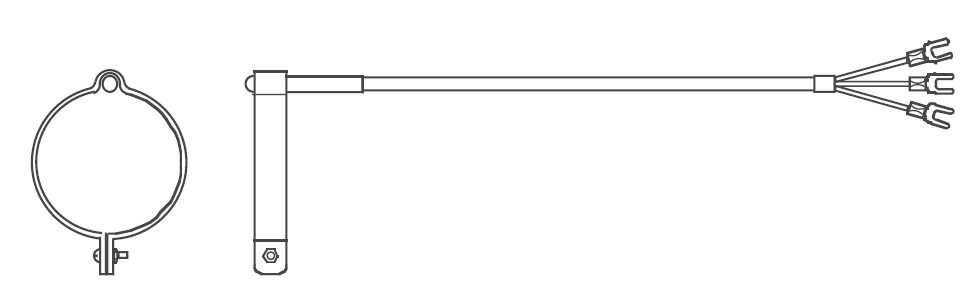

Ring type RTD for pipe surface temperature measurement
RRS is a RTD that measures the surface temperature of a pipe by fixing the sensor to the pipe with an attached ring.
Used when the sensor cannot be inserted into the piping.
Delivery: Inquiry
Features
Can be used even when the sensor cannot be inserted into the piping.
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class B±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single |
| Insulation resistance | 100MΩ or more with 125V |
