RFL

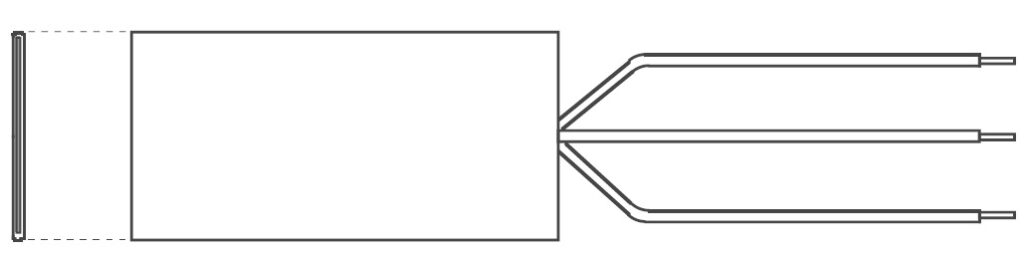

RFL(Flat Thermo, RTD for flat surface temperature measurement)
RFL is a 2 mm thick flat resistance thermometer that is used not only to measure the surface temperature of a flat surface but also to control the temperature of the floor.
Delivery: Inquiry
Features
A thin RTD with a thickness of 2 mm
Not only can it be used for measuring the surface temperature of flat surfaces, but it is also suitable for temperature control of floor heating systems.
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3wire |
| Tolerance | Class A±(0.15＋0.002｜t｜) Class B±(0.3＋0.005｜t｜) |
| Measuring Current | 1mA |
| Number of element | Single |
| Insulation | 100MΩ or more with 25V |
