R03

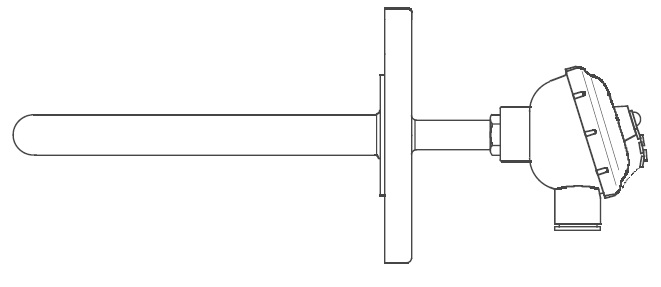

RTD (Resistance Temperature Detectors)with Connection head and Flange
R03 is a flange type resistance thermometer, and can be used for various applications such as piping, ducts, and tanks.
Delivery: Inquiry
Features
With Connection head and Flange
Download
Date Sheets
Specifications
| Element | Pt100Ω resistance element |
|---|---|
| Wiring | 3-wire |
| Tolerance | Class A : ±(0.15 + 0.002 | t | ) Class B : ±(0.3 + 0.005 | t | ) |
| Measuring current | 1mA |
| Number of element | Single / Double |
| Insulation resistance | 100MΩ or more with 125V |
