Relentlessly Pursuing Field-Ready Digital Panel Meters
●High performance at basic specifications
Watanabe developed WPMZ series as multi-display digital panel meter matched to the production site, and focused on the basic performance such as [1. Easy to read] [2. Easy to use].
WPMZ is a product that can cover various requirements, such as process monitoring, quality judgement etc. at the production site for various applications and environment.
●Covers individual requirements with 4 products
The WPMZ series have 4 product lineups according to the measuring signal, installation requirements, customer’s machine and equipment.
WPMZ is compatible with applications in various industries due to high performance as a multi-display digital panel meter and various functions.
WPMZ can use as [DC voltmeter], [DC ammeter], [Strain gauge meter], [Tachometer], [Flow meter] etc. and useful & high performance at sites as process measurement.
●WPMZ-1
[WPMZ-1] is for measuring DC voltage / Current, and it is especially suited for High-speed sampling on the production line in factory manufacturing process.
We recommend using at parts inspection for shortening the inspection process by NG judgement and clearance judgement etc.
●WPMZ-3
[WPMZ-3] is for measuring strain gauge, and it has wave compare and multi hold function.
It is suitable for Process control, Quality control and traceability etc. at the manufacturing site where mass production is carried out with constant cycle.
●WPMZ-5
[WPMZ-5] is Digital panel meter for measuring Rotation & Speed.
By installing a rotary encoder in a line or device that uses a rotating mechanism such as a roll, the speed of the roll can be measured in real time and the rotation can be controlled.
●WPMZ-6
[WPMZ-6] is Digital panel meter for measuring Instantaneous / Integrated Flow rate.
It is useful for flow rate / flow total measurement of tanks installed in equipment or production lines etc.
WPMZ-6 can measure two different liquids flow rates, to monitor the flow difference to stabilize the mixing process.
Focused on Easy to read
High-brightness and sharp display to read small letters

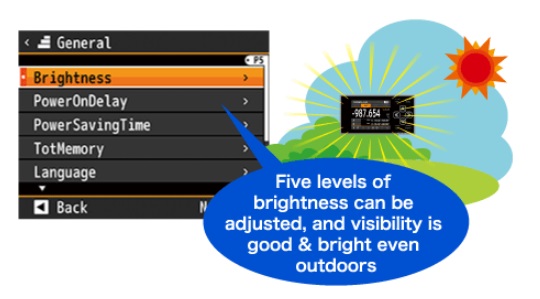

5 levels brightness setting
2.4 inch high brightness TFT full-color LCD.
WPMZ has 5 level brightness setting to adjust according to the indoor / outdoor lighting of site.
Also 4 high visibility background color can be set in case of alarm output is ON.
Background color changes when alarm output

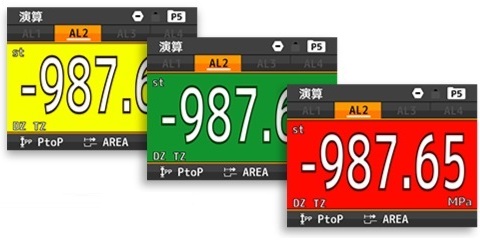

Alarm display color can be selected from 3 colors of Red, Green ando Yellow according environment.
90° Display rotation is effective
There is a function to rotate display 90°.
Also able to change key assignment of cross keys.
Easy to read by large-size & high brightness color LCD display.(left)
Able to change the display direction to vertical.(right)
Focused on Easy to use

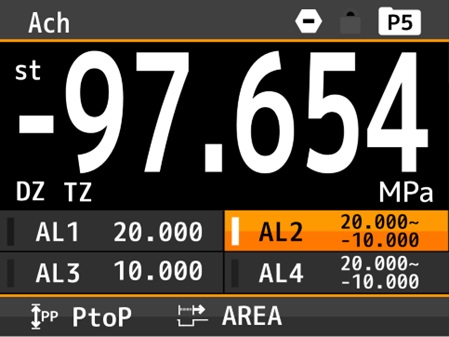

Numerical display and graph display selectable according to the measurement purpose
1 to 3 elements in one display

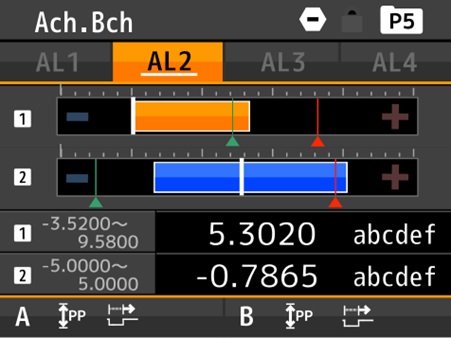

Shows ratio by Bar graph

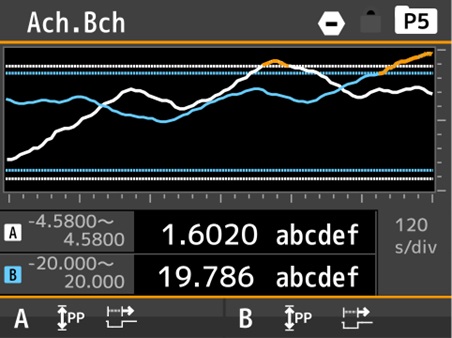

Shows trend by Trend graph

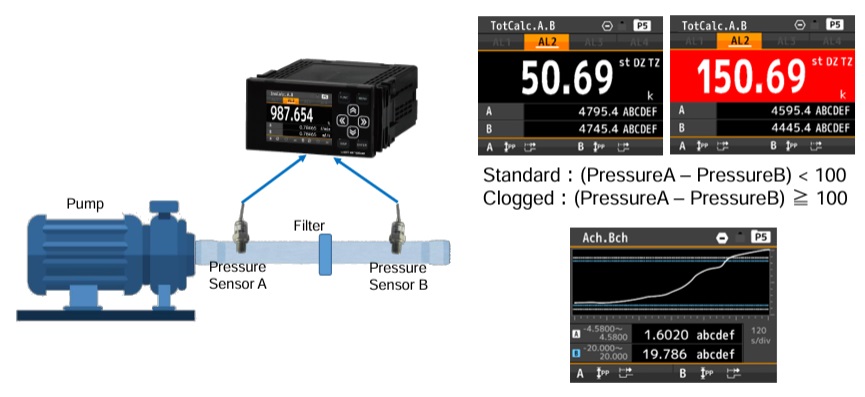

Membrane filter clogging monitoring
Detects clogging from the pressure difference before and after the filter.
It is also possible to detect abnormalities that occur suddenly and grasp the situation up to that point.

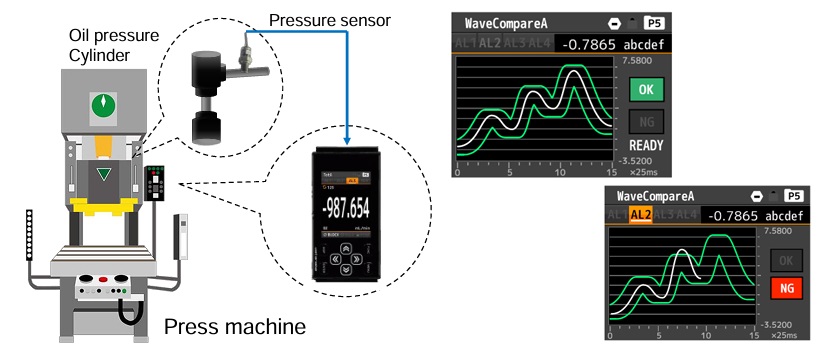

Judgment of oil pressure press machine
The quality of the press is judged by the pressure waveform.
It is possible to judge not only the pressure level but also the concept of time.
High-speed sampling of 4000 times / sec at the fastest.

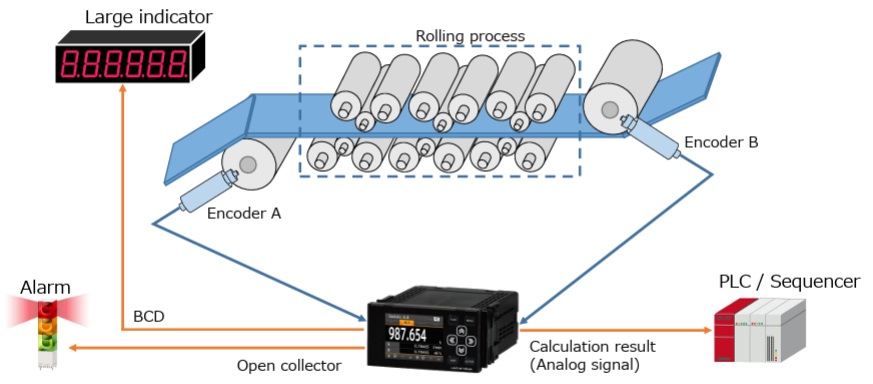

Material reduction rate management of rolling process
Monitors the reduction rate and controls feedback.
Programless calculation setting reduces PLC setting man-hours.

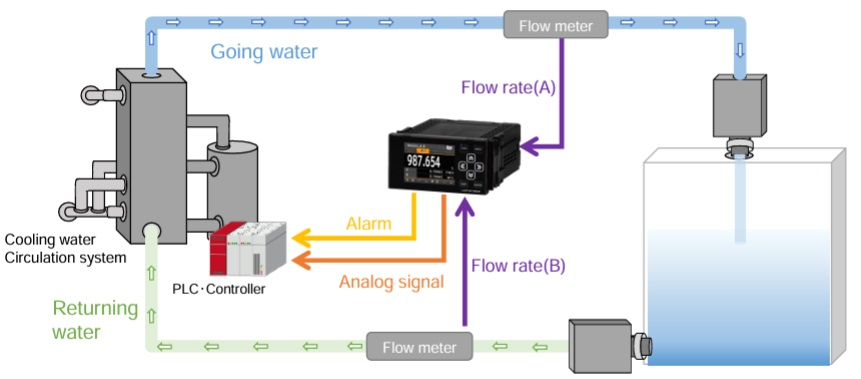

Control flow rate of the cooling circulation device
Outputs the difference calculation result to the PLC / controller.
Adjustment operation such as changing the alarm level can be easily performed on site.
