Digital Panel Meters
A7□17 ：Resistance meter

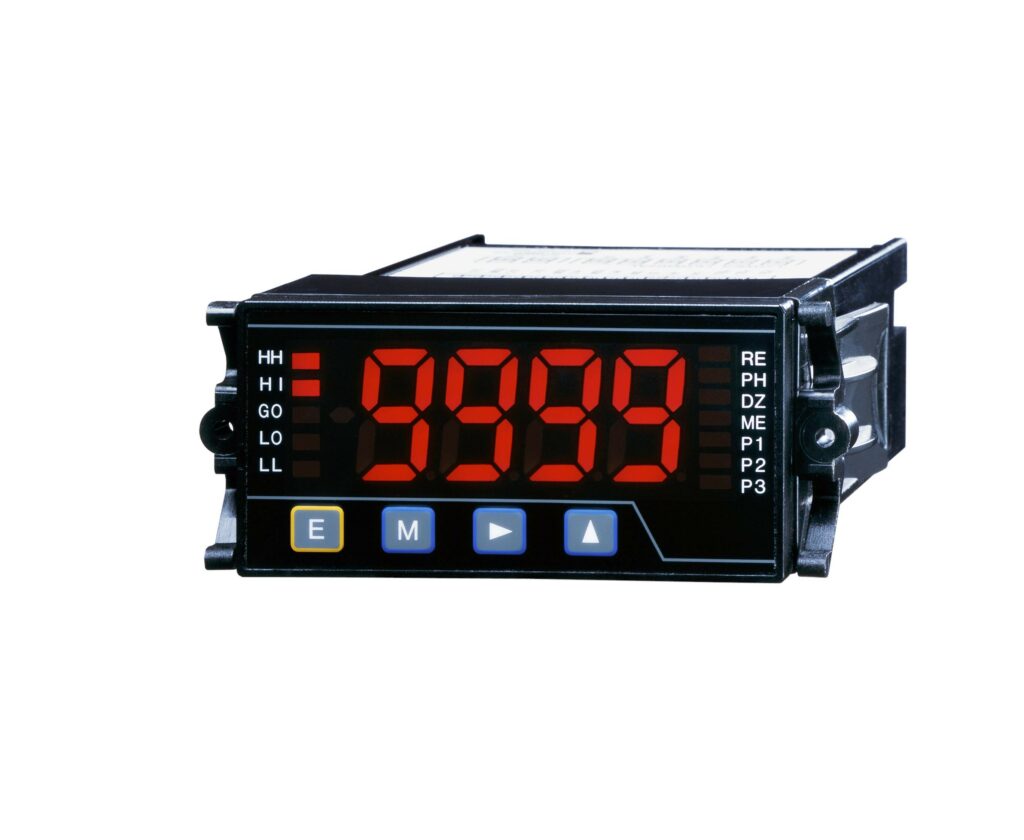

36mm x 72mm resistance meter
Features
・36mm x 72mm panel
・Visualise alarm condition by 2 colour LED
・It is possible to change measurement range by input range selection
・Various output ranges and power supply voltages are selectable to suit your application
Delivery：1week
Download
| Date Sheets | Specification sheet |
|---|---|
| Manuals | Operation Manual Instruction Manual |
| Dimensions | Dimensions |
| Others | unavailable now |
Specifications
| Input | Resistance |
|---|---|
| Output | ※Specification depends on model codes. ・Comparative output×5(HH/HI/GO/LO/LL) Relay output･･･AC125V 0.3A/DC30V 1A Photo coupler･･･DC30V 50mA ・Analog output×1 DC voltage/DC current ・BCD output×1 TTL Open collector･･･DC30V 10mA ・Communication output×1 RS-232C/RS-485 |
| Network | RS-232C RS-485 |
| Power | AC100~240V DC12~48V |
| Accuracy | ±0.1%rdg+4digit |
| Dielectric strength | AC power supply:AC2000V DC power supply:DC500V |
| Weight | Approx.160g |
| Dimensions(HWD) | 36×72×118mm |
| Operating temperature/humidity | 0~+50℃ 35~85%RH |
| Panel size(HW) | 36×72mm |
| Display digit | 4-digit |
