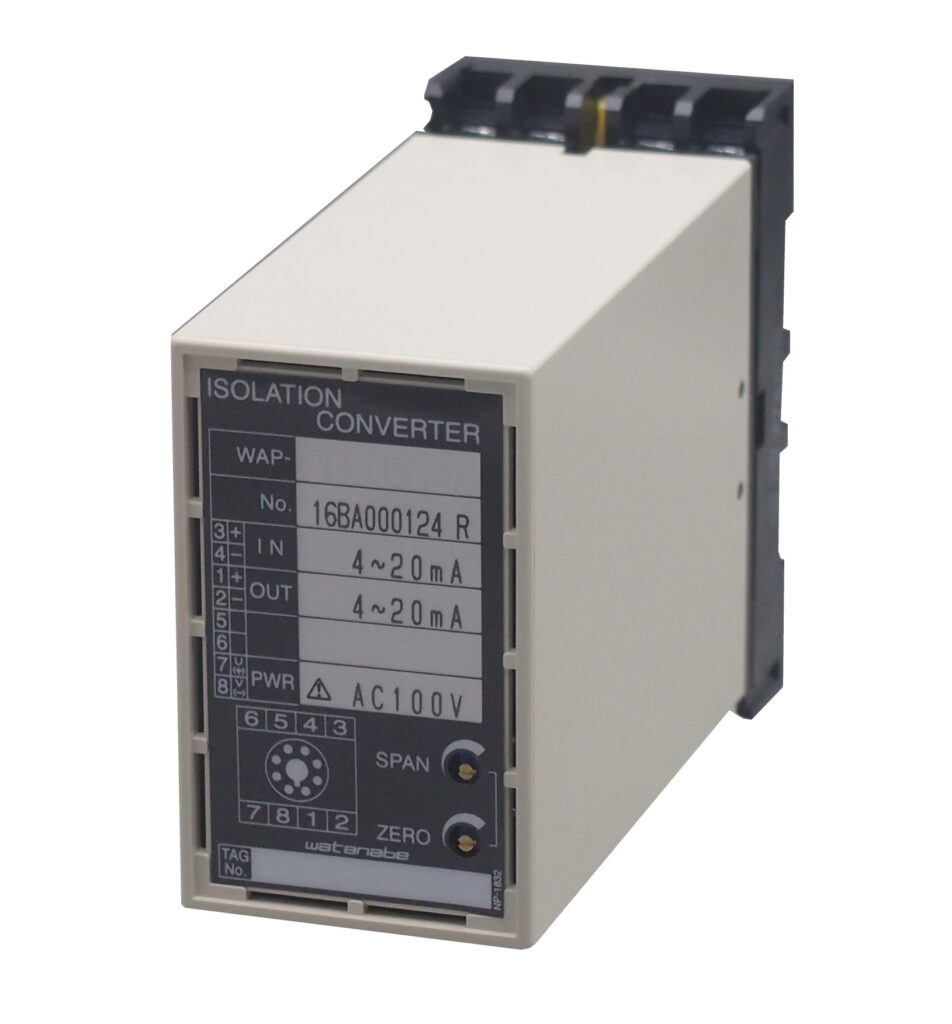

WAP-ABS
Absolute value output converter
Converter which outputs DC signal proportional to the absolute value of the input signal
Features
Easy maintenance by plug-in structure
Compatible with maximum 60°C operating temperature
Wide zero & span adjustment ±20% full scale
Download
Dimensions
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | DC voltage/DC current |
| Power | AC100V AC110V AC200V AC220V DC24V |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 25ms |
| Zero-Span adjustment | ±20%fs |
| Dielectric strength | AC2000V |
| Weight | Approx.400g |
| Dimensions(HWD) | 97×51×126mm |
| Operating temperature/humidity | -5~+60℃ Lower limit 90%RH |
