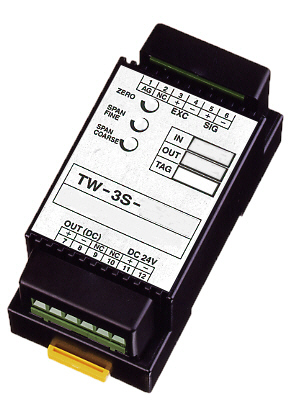

TW-3S ：Load cell converter
Converter which outputs DC signal proportional to the load cell signals
Features
・Bridge power supply to the load cell
・Space-saving and weight-saving by unifying converter and terminal block
Delivery：1week
Download
| Date Sheets | Specification sheet |
|---|---|
| Manuals | Manual |
| Dimensions | Dimensions |
| Others | unavailable now |
Specifications
| Input | Load cell(350Ω) |
|---|---|
| Output | DC voltage/DC current |
| Power | DC24V |
| Accuracy | ±0.25%fs |
| Response time(0→90%) | 10ms |
| Dielectric strength | AC1500V |
| Weight | Approx.120g |
| Dimensions(HWD) | 98×48×41mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
