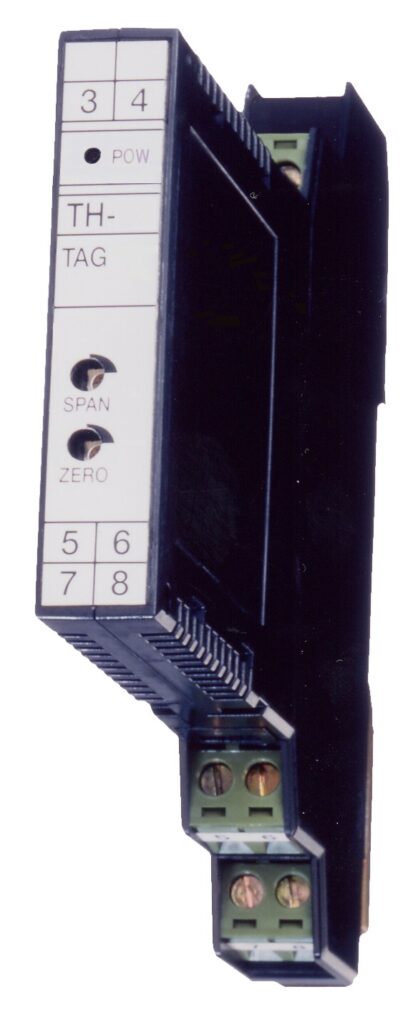

TH-2F/5F ：Extremely small DC signal isolator
Isolator which is compatible with mV/μA signal input
Features
12.5mm width slim case converter has an effect on space-saving at installation by close mounting
Delivery：1week
Download
| Date Sheets | Specification sheet |
|---|---|
| Manuals | Manual |
| Dimensions | Dimensions |
| Others | unavailable now |
Specifications
| Input | DC voltage/DC current |
|---|---|
| Output | DC voltage/DC current |
| Power | AC100〜240V DC24V |
| Accuracy | ±0.1%fs |
| Response time(0→90%) | 3ms or 50ms |
| Zero-Span adjustment | ±5%fs |
| Dielectric strength | AC1500V |
| Weight | Approx.80g |
| Dimensions(HWD) | 103×12.5×115mm |
| Operating temperature/humidity | -5~+50℃ Lower limit 90%RH |
